sequential-workflow-designer

Customizable no-code component for building flow-based programming applications or workflow automation. 0 external dependencies. Check out https://nocode-js.com

Runssource: GitHubhomepageTypeScriptMITcommit 842e3b251233

TypeScript, MIT licensed. The project labels itself: agent builder, agentflow, ai designer, automation, component, designer, flow based programming and flowchart.

sequential-workflow-designer runs. An Argusic agent installed it in 11.3 minutes and hit 5 errors and fixed every one without help on a clean machine with no GPU, and the whole session was recorded.

The sequential-workflow-designer TypeScript package builds via rollup into ESM/CJS/UMD formats with type declarations, all 112 unit tests pass in ChromeHeadless, and the designer correctly renders a sample workflow as SVG in the browser.

What the agent ended up with on a clean machine, in its own words. How this is measured

Measured by Argusic on a fresh machine every time. Every number links to its evidence. Argusic Score 98.3 of 100 (the mean of this project's run scores).

At a glance

verdict
Runs
Argusic Score
98.3 / 100
cost of the verifying run
$0.12 (measured)
recorded runs
2
last tested
stars
1,486
forks
150
open issues
1
watchers
17
size
3 MB
created
last push

Subject data from GitHub, linked at the top of this page, refreshed . Test data by Argusic (CC BY 4.0); every number links to a run page with the full log, the recording, and their sha256 hashes.

What was measured

From the run that decided this verdict. Every line is a recorded value, not an estimate.

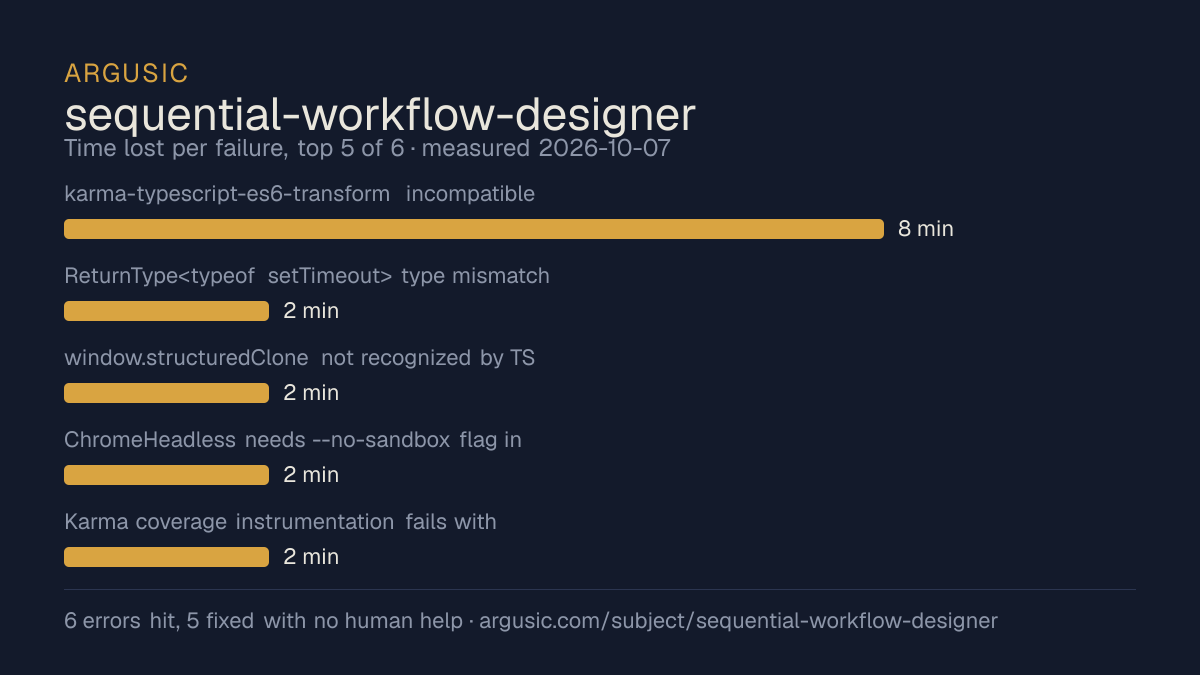

Time lost to each failure while testing sequential-workflow-designer, drawn from the recorded run
Every bar is a failure the agent recorded, with the time it cost. Drawn from this run, not from anywhere else.

What went wrong, in the agent's own words

The agent's own words, worst first, never rewritten into advice.

  • No Chrome binary on system2 minutes
  • yarn not available but npm workspaces used1 minute
  • TypeScript error: Property 'structuredClone' does not exist on type 'Window & typeof globalThis' in node v18/TS4.91 minute
  • TypeScript error: Type 'number' is not assignable to type 'Timeout' for setTimeout return in workspace.ts1 minute
  • Chrome sandbox not usable in container1 minute
Install time
11 minutes
Cold machine to finish
12 minutes
Errors hit and fixed
5 hit, 5 fixed with no human help
How the result was proved
karma start --single-run exited 0, 112 of 112 SUCCESS; puppeteer-launched Chrome headless confirmed Designer.create() produces 8 SVG elements and renders step name 'Task 1'
Model tokens used
165,427
Exact commit tested
842e3b251233
Container image
sha256:cdd920bce783

What was not measured

The other half, so you can see exactly how far this evidence goes. A gap is printed as a gap and never filled in.

Peak GPU memory
this ran on a CPU machine, so there was no GPU to sample
Behaviour over a long run
each attempt uses the smallest documented settings and a fixed time budget, so this measures whether it runs, not how it holds up under load

The end of the recording

The last lines of the terminal session that decided this verdict, exactly as they were recorded.

Chrome Headless 115.0.5790.98 (Linux x86_64): Executed 109 of 112 SUCCESS (0 secs / 0.56 secs)
Chrome Headless 115.0.5790.98 (Linux x86_64): Executed 110 of 112 SUCCESS (0 secs / 0.56 secs)
Chrome Headless 115.0.5790.98 (Linux x86_64): Executed 111 of 112 SUCCESS (0 secs / 0.56 secs)
Chrome Headless 115.0.5790.98 (Linux x86_64): Executed 112 of 112 SUCCESS (0 secs / 0.56 secs)
Chrome Headless 115.0.5790.98 (Linux x86_64): Executed 112 of 112 SUCCESS (0.65 secs / 0.56 secs)
TOTAL: 112 SUCCESS
All 112 tests pass, all SUCCESS. Let me now calculate elapsed time and produce the final result.
2026-11-15T02:59:48.036369Z ERROR codex_core::session: failed to record rollout items: thread 01a1d…
2026-11-15T02:59:48.036408Z ERROR codex_core::session: failed to record rollout items: thread 01a1d…
tokens used
165,427
All 112 tests pass, all SUCCESS. Let me now calculate elapsed time and produce the final result.

Replay the whole session, every command from a clean machine to this point.

How it was tested

One agent, one container, no human help. It installs the project the way its own documentation says to, runs it, and fixes what breaks. Everything below is recorded as it happened: the terminal session, the log and the exact commit. The full method.

Strengths and limits

Measured facts, not opinions. How this is written.

What went well

  • Reached a running state on a clean machine, with the session recorded.
  • Installed in 11.3 minutes.
  • Recovered from all 5 errors without a human stepping in, which says the failures are documented well enough to solve.
  • Ran without a GPU, so it does not need one to start.
  • Licensed MIT, as reported by its host.
  • Measured 2 times, so the result is not a one-off.

What it is a reasonable choice for

  • Trying it on a laptop or a small server: it reached a running state without a GPU.

Also tested, in the same area

Every one of these was installed and run by Argusic on a clean machine. Nothing appears here that was not tested.

Run history

tested byattemptoutcomescorecost USDwhen
Argusic Runner2/3Runs100.000.12
Argusic Runner1/3Runs96.670.16

Topics (from GitHub)

agent-builderagentflowai-designerautomationcomponentdesignerflow-based-programmingflowchartflowchartsjavascriptlowcodeno-codenocodereactjstypescriptworkflowworkflow-automationworkflow-builderworkflow-designer

Embed the badge

Markdown for the project README. It links back here; terms on the terms page.

[![Tested by Argusic](https://argusic.com/badge/sequential-workflow-designer.svg)](https://argusic.com/subject/sequential-workflow-designer)

Questions

Does sequential-workflow-designer run?
Yes. sequential-workflow-designer runs. Argusic installed and launched it on a clean machine in 11 minutes, hitting 5 errors on the way, and recorded the session.
How did Argusic test sequential-workflow-designer?
On a fresh, disposable machine, with every command recorded and the repository pinned at commit 842e3b251233. 2 attempts are recorded, and the full method is on the methodology page.
What did it cost to test sequential-workflow-designer?
The run that produced this verdict cost $0.12: real compute and model cost, not a list price per million tokens. It is recorded on that run's page.
How long does sequential-workflow-designer take to install?
11.3 minutes in the run that decided this verdict, from a clean machine to a running state. That is one measured attempt, not an average.
Does sequential-workflow-designer need a GPU?
Not to start. Argusic reached a running state on a machine with no GPU.
What goes wrong when installing sequential-workflow-designer?
5 things broke in the recorded run, and 5 were fixed without human help. Each one, and the time it cost, is listed on this page.
Where is the evidence for sequential-workflow-designer?
All 2 recorded runs are on this page, each linking to its full log and terminal recording, stored with a sha256 fingerprint so it cannot be quietly altered.
