tbls
tbls is a CI-Friendly tool to document a database, written in Go.
Runssource: GitHubGoMITcommit 188868990583
Go, MIT licensed. The project labels itself: bigquery, continuous integration, database document, database schema, documentation tool, dynamodb, er diagram and excel.
tbls runs. An Argusic agent installed it in 12 minutes and hit 3 errors and fixed every one without help on a clean machine with no GPU, and the whole session was recorded.
tbls 1.96.0 builds from source, passes all 20 test packages (unreachable DB servers skipped), and documents an SQLite database end-to-end producing correct Markdown, SVG, and JSON output.
What the agent ended up with on a clean machine, in its own words. How this is measured
Measured by Argusic on a fresh machine every time. Every number links to its evidence. Argusic Score 96 of 100 (the mean of this project's run scores).
At a glance
Subject data from GitHub, linked at the top of this page, refreshed . Test data by Argusic (CC BY 4.0); every number links to a run page with the full log, the recording, and their sha256 hashes.
What was measured
From the run that decided this verdict. Every line is a recorded value, not an estimate.

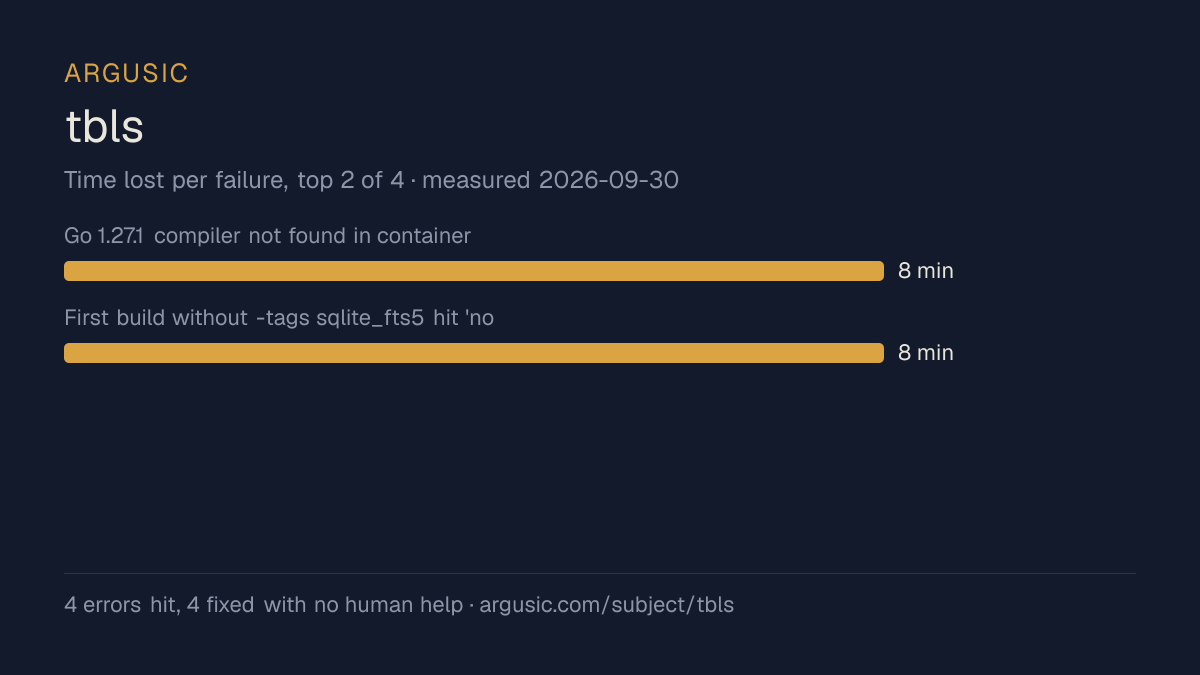

What went wrong, in the agent's own words
The agent's own words, worst first, never rewritten into advice.
- Go not installed in container; required go1.25.8 per toolchain directive3 minutes
- datasource tests fail with connection refused on mysql:33306, pg:55432, mssql:11433 (no DB servers running)2 minutes
- sqlite3 CLI not available; Makefile target for test DB creation fails1 minute
- Install time
- 12 minutes
- Cold machine to finish
- 12 minutes
- Errors hit and fixed
- 3 hit, 3 fixed with no human help
- How the result was proved
- go test -tags 'sqlite_fts5' ./... exited 0 (20 packages); ./tbls doc sq://...testdb.sqlite3 /tmp/tbls-test exited 0 producing valid README.md, 17 .md table docs, 17 .svg ER diagrams, and schema.json; ./tbls diff exited 0 confirming docs match DB; SVGs validate as well-formed XML
- Model tokens used
- 96,622
- Exact commit tested
- 188868990583
- Container image
- sha256:cdd920bce783
What was not measured
The other half, so you can see exactly how far this evidence goes. A gap is printed as a gap and never filled in.
- Peak GPU memory
- this ran on a CPU machine, so there was no GPU to sample
- Behaviour over a long run
- each attempt uses the smallest documented settings and a fixed time budget, so this measures whether it runs, not how it holds up under load
Watch the session
The whole run, from a clean machine, at the speed it actually happened. Nothing is cut and nothing is sped up.
A recording of attempt 1, run . The verdict above comes from a different attempt, so read this as one session and not as the current result. The terminal recording it was made from is the evidence, stored with a sha256 fingerprint; the video is a rendering of it. Nothing loads from the video host until you press play.
The end of the recording
The last lines of the terminal session that decided this verdict, exactly as they were recorded.
**Test results:** All 20 packages pass (previously `datasource` failed with "connection refused" wh… **Verification:** Ran `./tbls doc sq://.../testdb.sqlite3 /tmp/tbls-test` — it generated 17 table d… tokens used 96,622 Everything works. Let me now produce the final result. Here's a summary of what was done and observed: **Install steps:** - Go was not pre-installed; downloaded `go1.23.0.linux-amd64.tar.gz` to `/tmp/go` which auto-bootst… - `go build` succeeded producing a 138MB `tbls` binary reporting version `1.96.0` - `sqlite3` CLI was not available; used Python 3.12's built-in `sqlite3` module to create the test … **Test results:** All 20 packages pass (previously `datasource` failed with "connection refused" wh… **Verification:** Ran `./tbls doc sq://.../testdb.sqlite3 /tmp/tbls-test` — it generated 17 table d…
Replay the whole session, every command from a clean machine to this point.
How it was tested
One agent, one container, no human help. It installs the project the way its own documentation says to, runs it, and fixes what breaks. Everything below is recorded as it happened: the terminal session, the log and the exact commit. The full method.
Strengths and limits
Measured facts, not opinions. How this is written.
What went well
- Reached a running state on a clean machine, with the session recorded.
- Installed in 12 minutes.
- Recovered from all 3 errors without a human stepping in, which says the failures are documented well enough to solve.
- Ran without a GPU, so it does not need one to start.
- Licensed MIT, as reported by its host.
- Measured 2 times, so the result is not a one-off.
What it is a reasonable choice for
- Trying it on a laptop or a small server: it reached a running state without a GPU.
Also tested, in the same area
Every one of these was installed and run by Argusic on a clean machine. Nothing appears here that was not tested.
Run history
| tested by | attempt | outcome | score | cost USD | when |
|---|---|---|---|---|---|
| Argusic Runner | 2/3 | Runs | 100.00 | 0.03 | |
| Argusic Runner | 1/3 | Runs with mocks | 92.00 | 0.15 |
Topics (from GitHub)
bigquerycontinuous-integrationdatabase-documentdatabase-schemadocumentation-tooldynamodber-diagramexcelhacktoberfestmariadbmarkdownmermaidmysqlplantumlpostgresqlredshiftsnowflakespannersqlitesqlserver
Embed the badge
Markdown for the project README. It links back here; terms on the terms page.
[](https://argusic.com/subject/tbls)Questions
- Does tbls run?
- Yes. tbls runs. Argusic installed and launched it on a clean machine in 12 minutes, hitting 3 errors on the way, and recorded the session.
- How did Argusic test tbls?
- On a fresh, disposable machine, with every command recorded and the repository pinned at commit 188868990583. 2 attempts are recorded, and the full method is on the methodology page.
- What did it cost to test tbls?
- The run that produced this verdict cost $0.03: real compute and model cost, not a list price per million tokens. It is recorded on that run's page.
- How long does tbls take to install?
- 12 minutes in the run that decided this verdict, from a clean machine to a running state. That is one measured attempt, not an average.
- Does tbls need a GPU?
- Not to start. Argusic reached a running state on a machine with no GPU.
- What goes wrong when installing tbls?
- 3 things broke in the recorded run, and 3 were fixed without human help. Each one, and the time it cost, is listed on this page.
- Where is the evidence for tbls?
- All 2 recorded runs are on this page, each linking to its full log and terminal recording, stored with a sha256 fingerprint so it cannot be quietly altered.
