mcp-server-chart
🤖 A visualization mcp & skills contains 25+ visual charts using @antvis. Using for chart generation and data analysis.
Runssource: GitHubhomepageTypeScriptMITcommit e2a8fb7c185e
TypeScript, MIT licensed. The project labels itself: antv, llm, mcp, mcp server, skills and visualization.
mcp-server-chart runs. An Argusic agent installed it in 37 minutes and hit 3 errors and fixed every one without help on a clean machine with no GPU, and the whole session was recorded.
All 43 tests pass, the MCP server builds and starts on stdio/SSE/streamable transports, and generates real chart images via the AntV GPT-Vis API.
What the agent ended up with on a clean machine, in its own words. How this is measured
Measured by Argusic on a fresh machine every time. Every number links to its evidence. Argusic Score 100 of 100 (the mean of this project's run scores).
At a glance
Subject data from GitHub, linked at the top of this page, refreshed . Test data by Argusic (CC BY 4.0); every number links to a run page with the full log, the recording, and their sha256 hashes.
What was measured
From the run that decided this verdict. Every line is a recorded value, not an estimate.

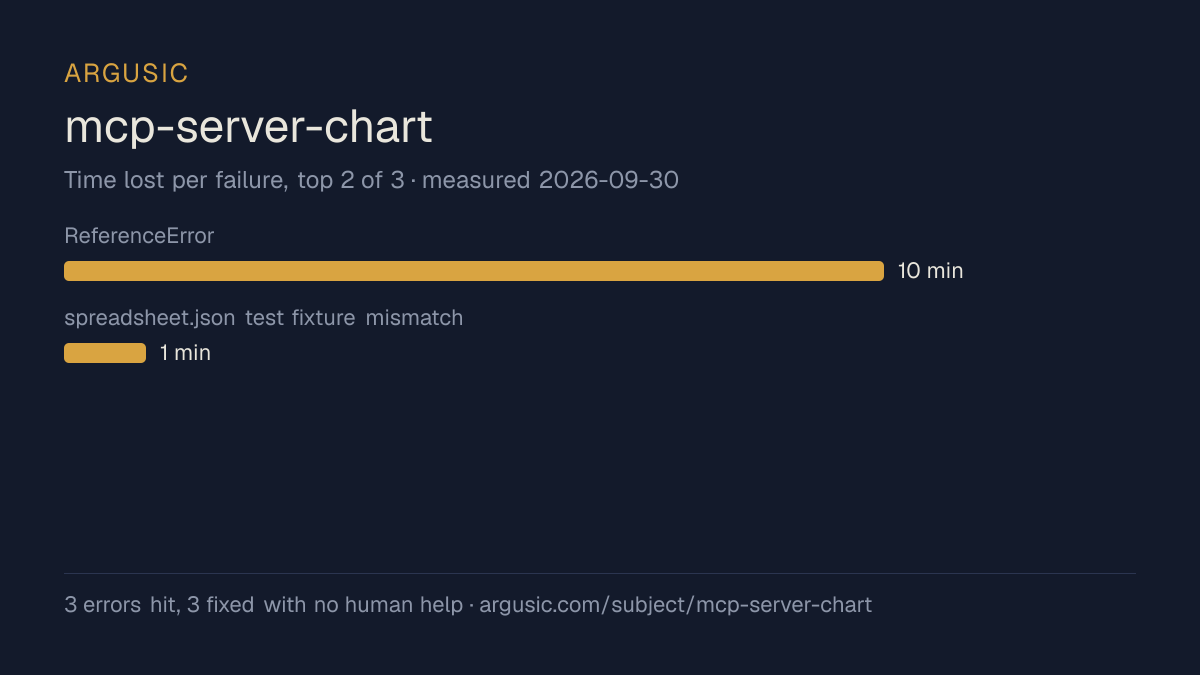

What went wrong, in the agent's own words
The agent's own words, worst first, never rewritten into advice.
- ReferenceError: crypto is not defined in Node 18 CJS when MCP SDK calls crypto.randomUUID()10 minutes
- spreadsheet.json test fixture mismatch: Zod v4 serializes union as type array instead of anyOf1 minute
- SSE multi-client test failed with 404 (cascade from streamable crash leaving port occupied)
- Install time
- 37 minutes
- Cold machine to finish
- 38 minutes
- Errors hit and fixed
- 3 hit, 3 fixed with no human help
- How the result was proved
- npm test exited 0, 43/43 passed; curl to streamable server: initialize returned protocol 2024-11-05, tools/list returned 27 tools, generate_line_chart returned https:// chart URL from AntV service
- Model tokens used
- 200,483
- Exact commit tested
- e2a8fb7c185e
- Container image
- sha256:cdd920bce783
What was not measured
The other half, so you can see exactly how far this evidence goes. A gap is printed as a gap and never filled in.
- Peak GPU memory
- this ran on a CPU machine, so there was no GPU to sample
- Behaviour over a long run
- each attempt uses the smallest documented settings and a fixed time budget, so this measures whether it runs, not how it holds up under load
The end of the recording
The last lines of the terminal session that decided this verdict, exactly as they were recorded.
- **Fix**: Resolved automatically by fixing Error 2.
## Verification
- `npm test` — **43/43 passed, 6/6 test files** (including streamable, SSE multi-client, all chart …
- `node build/index.js -t streamable` — server starts on `localhost:1122/mcp`
- `curl` streamable server:
- **initialize**: returned protocol version `2024-11-05`, server `mcp-server-chart` v`0.8.x`
- **tools/list**: returned 27 tools
- **tools/call generate_line_chart**: returned a real chart URL from the AntV GPT-Vis service
## ARGUSIC_RESULT
```json
{"install_succeeded": true, "launch_succeeded": true, "install_minutes": 37, "errors": [{"msg": "sp…
```Replay the whole session, every command from a clean machine to this point.
How it was tested
One agent, one container, no human help. It installs the project the way its own documentation says to, runs it, and fixes what breaks. Everything below is recorded as it happened: the terminal session, the log and the exact commit. The full method.
Strengths and limits
Measured facts, not opinions. How this is written.
What went well
- Reached a running state on a clean machine, with the session recorded.
- Installed in 37 minutes.
- Recovered from all 3 errors without a human stepping in, which says the failures are documented well enough to solve.
- Ran without a GPU, so it does not need one to start.
- Licensed MIT, as reported by its host.
What did not, or is not known
- Measured once so far. A single attempt shows it can run, not that it runs reliably.
What it is a reasonable choice for
- Trying it on a laptop or a small server: it reached a running state without a GPU.
Also tested, in the same area
Every one of these was installed and run by Argusic on a clean machine. Nothing appears here that was not tested.
Run history
Topics (from GitHub)
Embed the badge
Markdown for the project README. It links back here; terms on the terms page.
[](https://argusic.com/subject/mcp-server-chart)Questions
- Does mcp-server-chart run?
- Yes. mcp-server-chart runs. Argusic installed and launched it on a clean machine in 37 minutes, hitting 3 errors on the way, and recorded the session.
- How did Argusic test mcp-server-chart?
- On a fresh, disposable machine, with every command recorded and the repository pinned at commit e2a8fb7c185e. One attempt is recorded, and the full method is on the methodology page.
- What did it cost to test mcp-server-chart?
- The run that produced this verdict cost $0.17: real compute and model cost, not a list price per million tokens. It is recorded on that run's page.
- How long does mcp-server-chart take to install?
- 37 minutes in the run that decided this verdict, from a clean machine to a running state. That is one measured attempt, not an average.
- Does mcp-server-chart need a GPU?
- Not to start. Argusic reached a running state on a machine with no GPU.
- What goes wrong when installing mcp-server-chart?
- 3 things broke in the recorded run, and 3 were fixed without human help. Each one, and the time it cost, is listed on this page.
- Where is the evidence for mcp-server-chart?
- The recorded run is on this page, each linking to its full log and terminal recording, stored with a sha256 fingerprint so it cannot be quietly altered.
